CP12-1640-S
ADJUSTABLE SIDE CLAMP
Description
Material: S45C(JIS) / CK45(DIN),Heat treated: HRC 38°.
Surface finish: Black Oxide.
Application: Low profile side clamp keeps top surfaces clear for machining, ideal for rough or finished parts, available with plain or serrated jaw.
The CP12-ADJUSTABLE SIDE CLAMP, made from S45C/CK45, is heat-treated to HRC 38 and features a black oxide finish. It's designed for low-profile side clamping, suitable for both rough and finished parts, and is available with plain or serrated jaws.

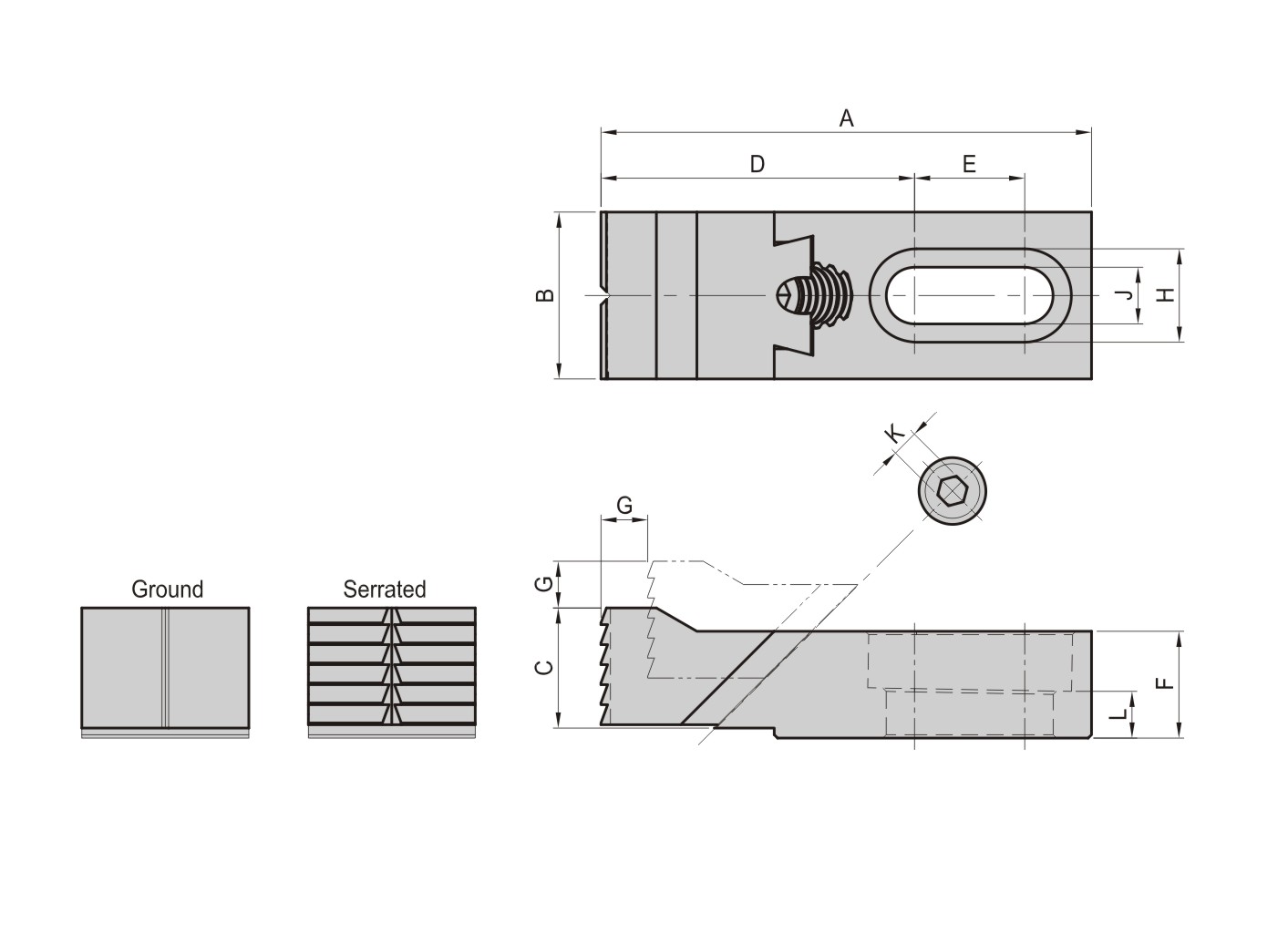

Dimension
| MODEL NO | Length | Height(MAX.) | Height(min.) |
|---|---|---|---|
| CP12-1640-S | 134.5 | 51.5 | 37.5 |
| MODEL NO. | A | B | C | D | E | F | G | H | J | K |
| CP12-1640-S | 134.5 | 40 | 37.5 | 82.0 | 35.0 | 30 | 14 | 26 | 17.0 | 8 |
| L | Type | kg | |
| 13 | Serrated | 1.02 |
