PT05-1219
EXTENSION NUT
- 2D
- 3D
PT05-1219
EXTENSION NUT
Description
Material: S45C(JIS) / CK45(DIN)Heat treated: HRC 30°~35°
Surface finish︰Black Oxide.
Application: Extends the length of clamping studs.
Dimension
| MODEL NO | Thread |
|---|---|
| PT05-1219 | M12 |

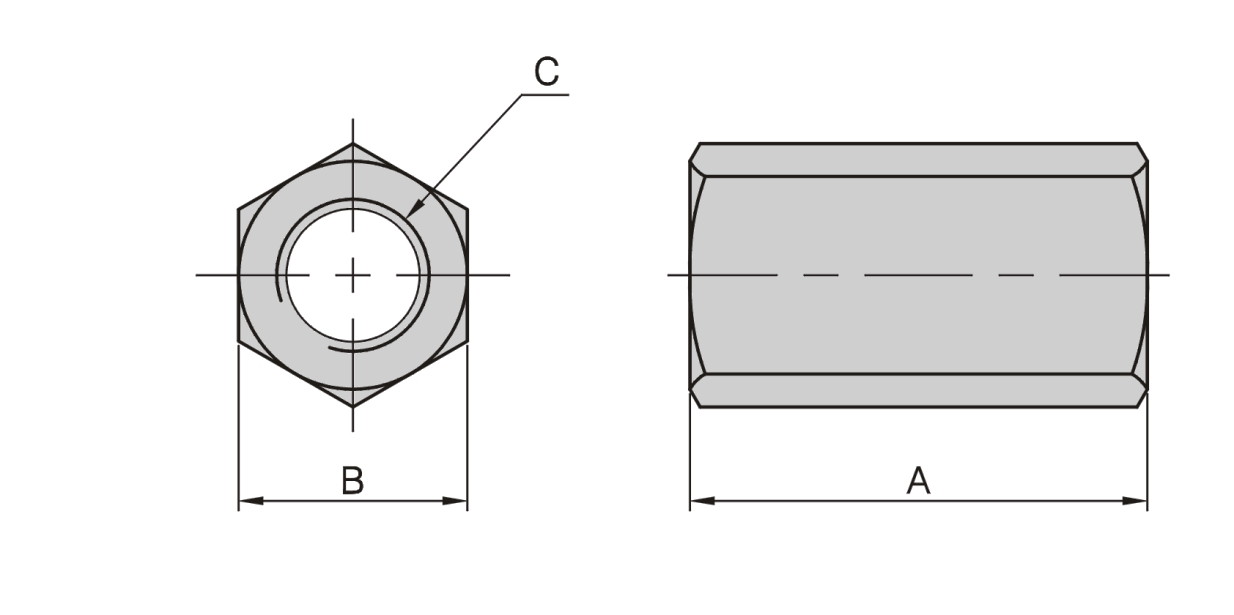

| MODEL NO. | A | B | C | kg |
| PT05-1219 | 36 | 19 | M12 | 0.046 |
