CP08-1245-36
SWING CLAMP

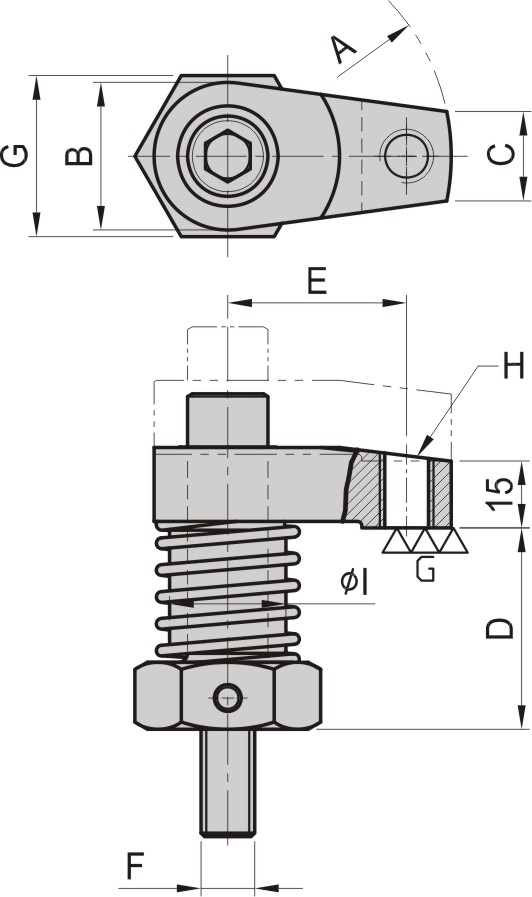

- 2D

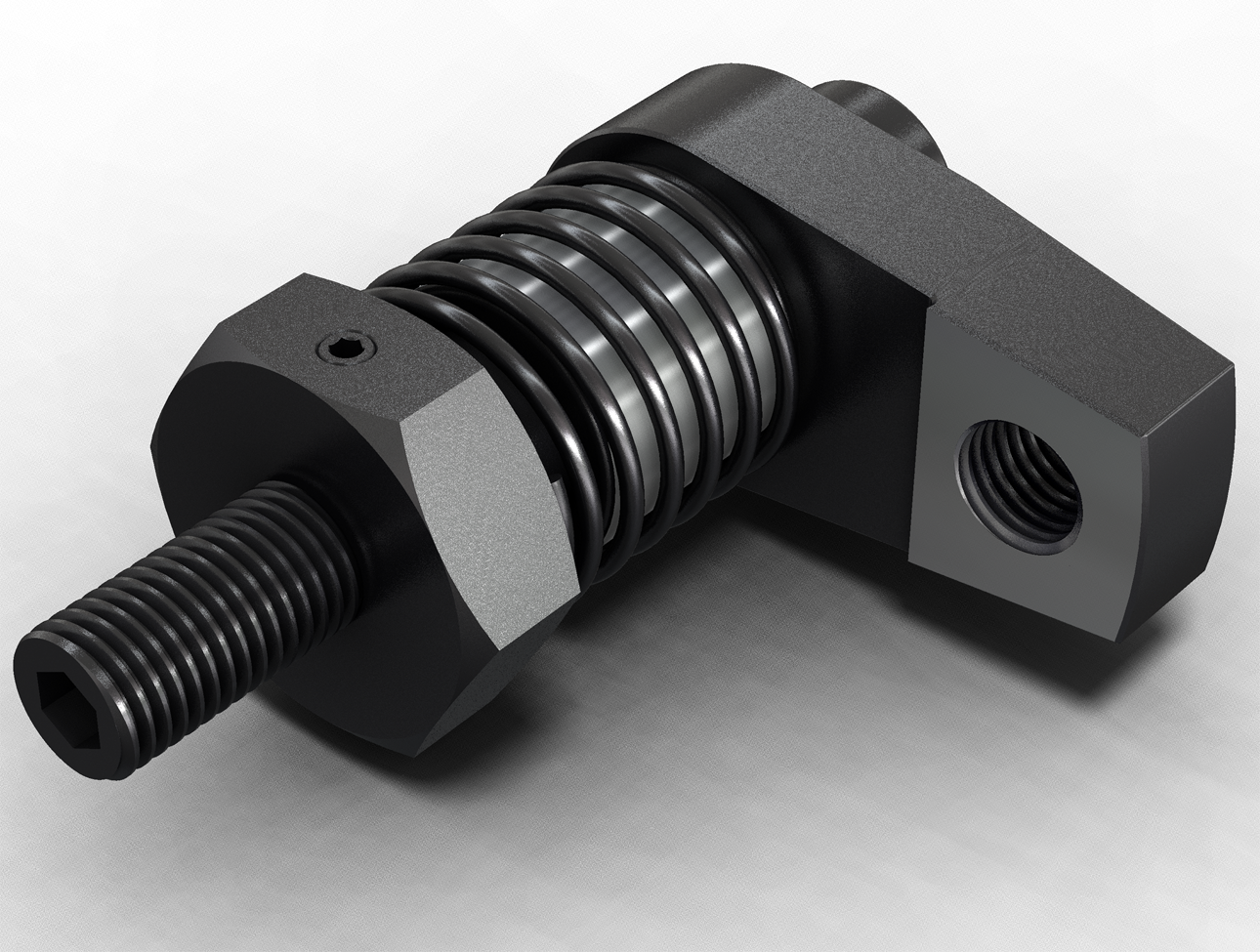

- 3D
CP08-1245-36
SWING CLAMP
Description
Material: SCM-4(JIS)Heat treated: HRC 32°~38°
Surface finish: Black Oxide.
Application: Multipurpose swing clamp, available with plain or threaded toe.
Dimension
| MODEL NO | OD | Thread |
|---|---|---|
| CP08-1245-36 | 36 | M12 |
| MODEL NO. | A | B | C | D | E | F | G | H | I | kg |
| CP08-1245-36 | 50 | 32 | 20 | 45 | 40 | M12 | 36 | M12 | 26 | 0.50 |
