PT20-1210
GRIPPER PAD(SQUARE)
- 2D
- 3D
PT20-1210
GRIPPER PAD(SQUARE)
Description
Material: SKH9(JIS) / S18-1-2-5(DIN)Heat treated: HRC 60°
Surface finish︰Black Oxide.
Application: Multipurpose work support and clamping unit, ideal for rough parts.

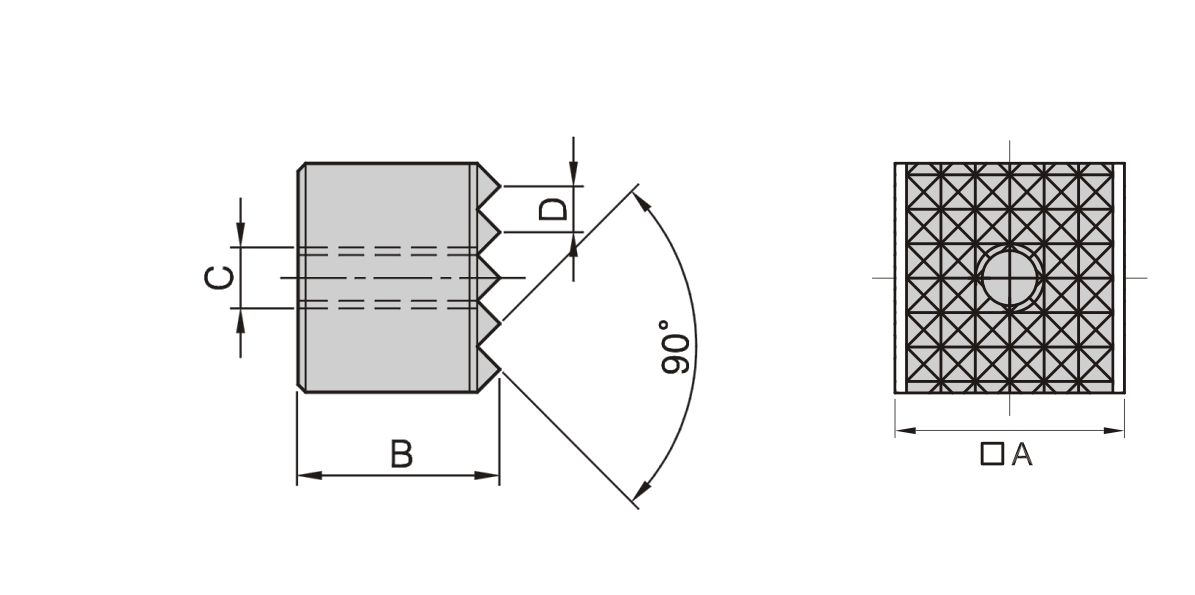

Dimension
| MODEL NO | Width | Thickness | Thread |
|---|---|---|---|
| PT20-1210 | 12 | 10 | M6 |
| MODEL NO. | A | B | C | D | kg |
| PT20-1210 | 12 | 10 | M6 | 3.0 | 0.010 |
