SU02-1630

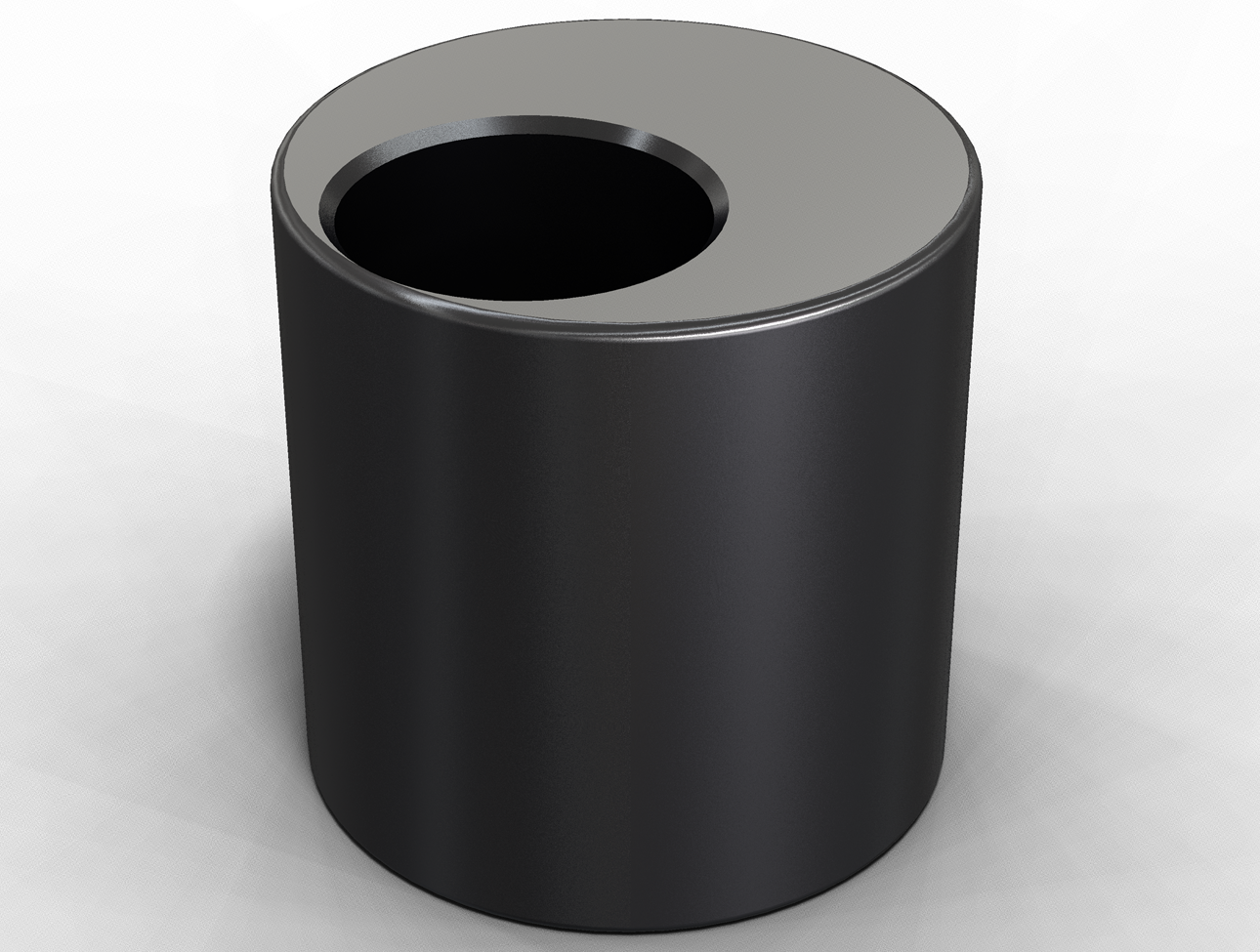

OFFSET JIG REST BUTTON
Description
Material: S45C(JIS) / CK45(DIN),Heat treated: HRC 40°.
Surface finish: Black Oxide.
Application: Use for supporting and / or positioning workpiece.
Dimension
| MODEL NO | Height | Diameter |
|---|---|---|
| SU02-1630 | 30 | 50 |
| MODEL NO. | A | B | C | D | E | kg |
| SU02-1630 | 30 | 50 | M16 | 12 | 10 | 0.36 |
