MIB-80250
Uniforce® Clamps/6pk
MIB-80250
Uniforce® Clamps/6pk
Description
The compact, economical MITEE-BITE Uniforce® Clamp enables you to fixture more parts on the machine table. The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel.– Increases production.
– Minimizes tool changes.
– Holds two parts with equilateral clamping action.
– Ideal for clamping flat or round work pieces.
– Reduces wasted space.
– Easily mated to hydraulic pull cylinders.
– Ideal for pallet changers.
– Show with our Locating Rails
Dimension
| MODEL NO | Width | Length | Height |
|---|---|---|---|
| MIB-80250 | 6.1 | 8.1 | 6.40 |
| MODEL NO. | Model | A | B | B1 | C | D* | E | F+ | Thread Size | Maximum Spread |
| MIB-80250 | 250 | 6.1 | 6.9 | 6.40 | 8.1 | 5.3 | 3.6 | 6.4 | M2 | 6.7 |
| Torque(N.m) | Clamping Force(N) | Number of Clamps per PACK | Key Size | |
| 0.70 | 880 | 6 | 1.5 |

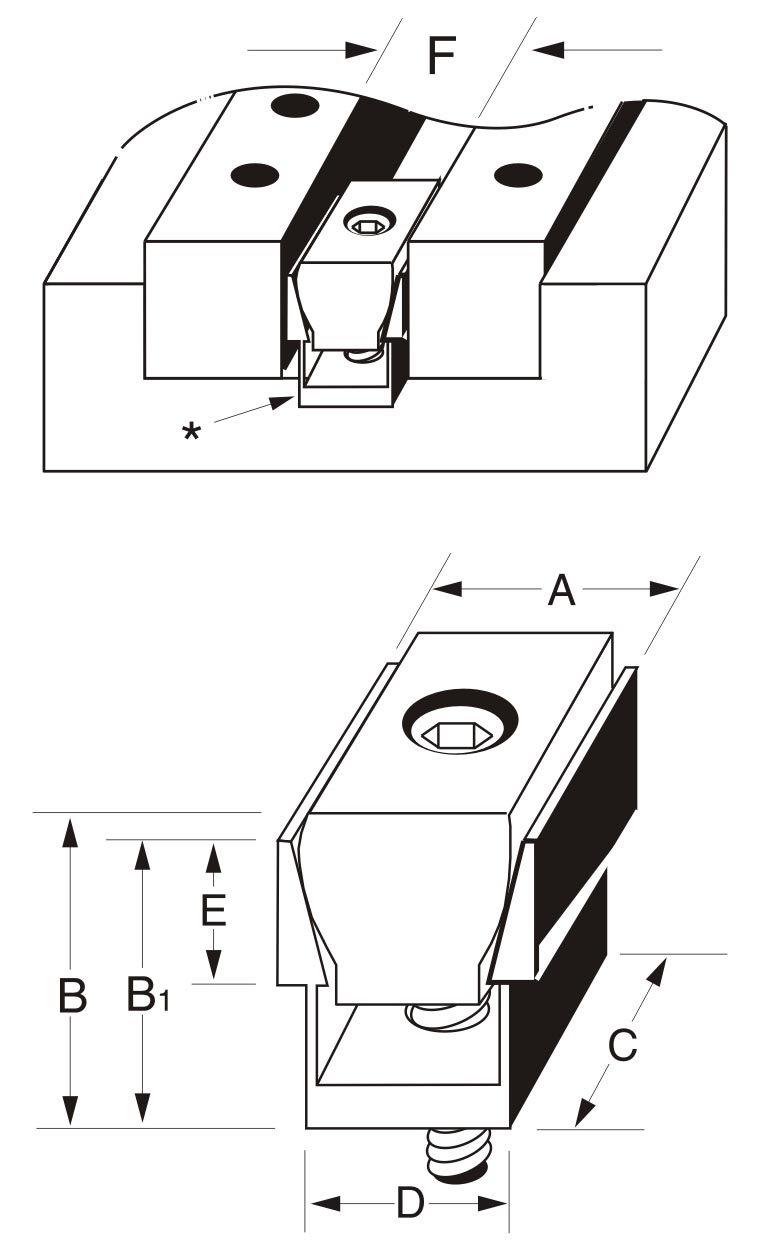

D*: A milled slot wider than D dimension will insure clamp remains in line with workpiece. Clamp sides should not come in contact with slot walls during expansion.
F: The distance needed between workpieces for clamp clearance. Drill and tap mounting hole on the center of F dimension.
