MIB-50652
T-Slot Kit (uses Cam Screw 50371)
MIB-50652
T-Slot Kit (uses Cam Screw 50371)
Description
The original MITEE-BITE T-Slot Clamp combines our unique cam action clamping element with a T-nut.Locks in machine T-slot for low profile clamping.
Makes fast set-ups possible right on the machine table.
Brass hex follows contour of unusual shaped parts
Packaged in pairs or complete kits
The Mitee-Bite Kit Contains.
– 4 Mitee-Bite T-Nuts
– 6 Mitee-Bite Fixture Clamps
– 2 Hex Keys

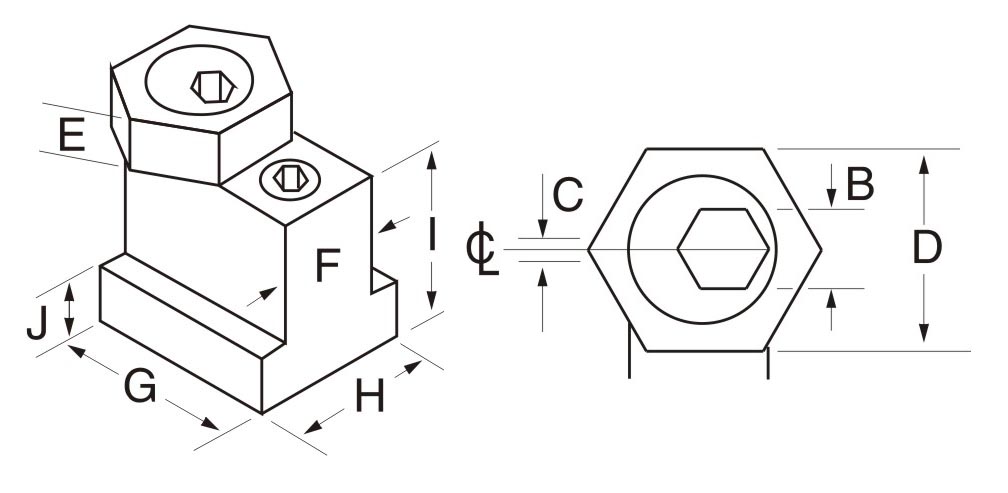

Dimension
| MODEL NO | Width | Length | Thickness |
|---|---|---|---|
| MIB-50652 | 28.6 | 34.7 | 9.53 |
| MODEL NO. | 凸輪螺栓 | T溝尺寸 | B | C | D | E | F | G | H | I |
| MIB-50652 | M 12 x 1.75 | 18 mm | 8 mm | 2.03 | 25.40 | 9.53 | 18 | 34.7 | 28.6 | 28.6 |
| 扭力矩 | 夾持力 | |
| 61.00 | 13340 |
整套內容: T型螺帽(4pc), 六面偏心夾持件(6pc), 六角板手(2pc)
