GVS-AS70
SUPER PRECISION VISE
GVS-AS70
SUPER PRECISION VISE
Description
Super precision: // ±0.003 / 100mm⊥ ±0.005 / 100mm
Heat treated: HRC 58°~60°
Material: SKS3

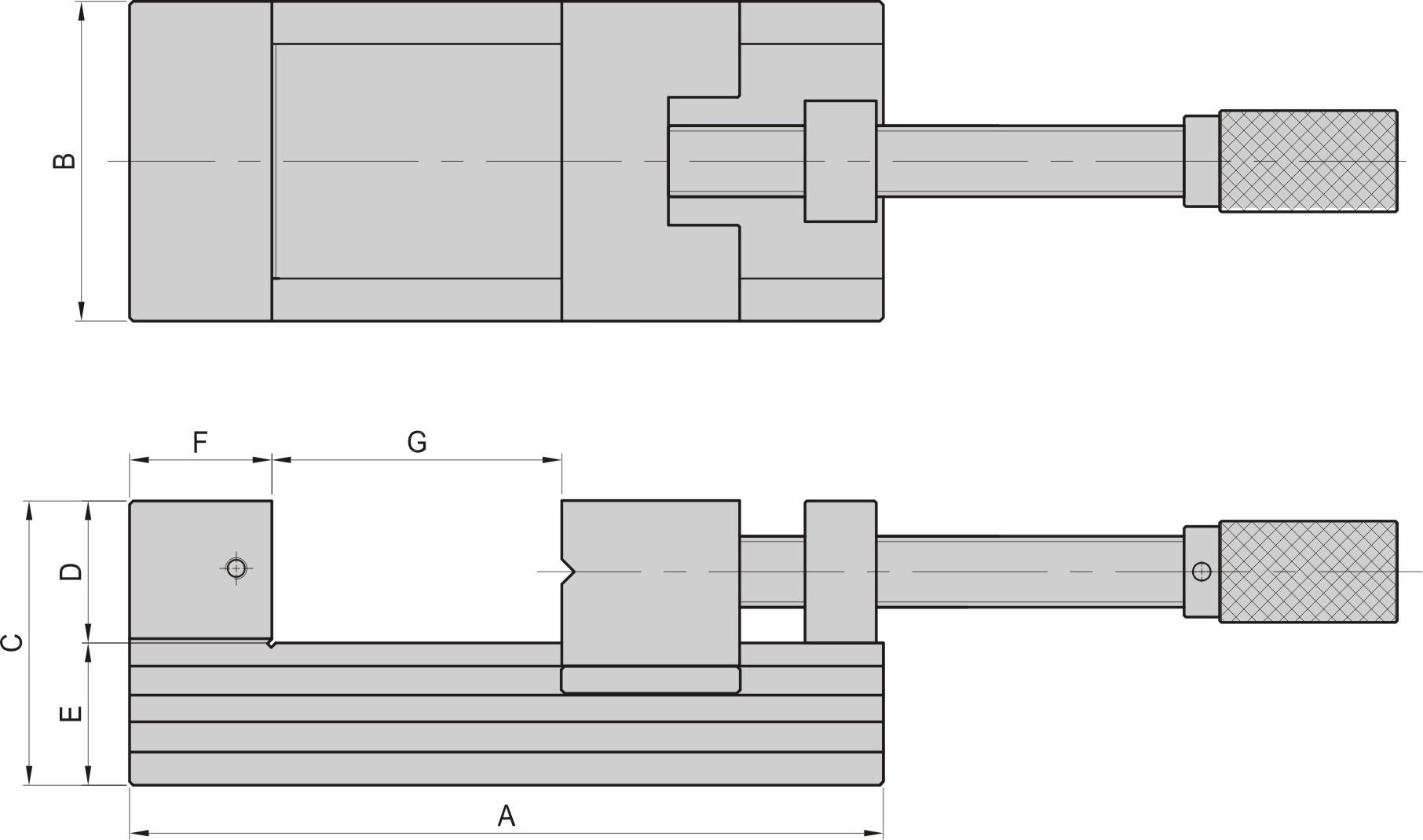

Dimension
| MODEL NO | Width | Clamping Range |
|---|---|---|
| GVS-AS70 | 70 | 0~80 |
| MODEL NO. | A | B | C | D | E | F | G | kg |
| GVS-AS70 | 165 | 70 | 62 | 30 | 32 | 33.0 | 0 ~ 80 | 4.5 |
