NBK-12
ROUND CHUCK
NBK-12
ROUND CHUCK
Description
1. The handle with an angle of 30 degrees is much convenient for operations.2. The "super thin thickness" design of chucks increase the "allowable distance" of machining operations.
3. Chuck flange makes loading and unloading operations simpler and more convenient.
4. Hard jaws and Soft jaws can be used alternatively.
Dimension
| MODEL NO | Outer diameter grasp | Inner diameter grasp |
|---|---|---|
| NBK-12 | φ15-φ300 | φ86-φ290 |

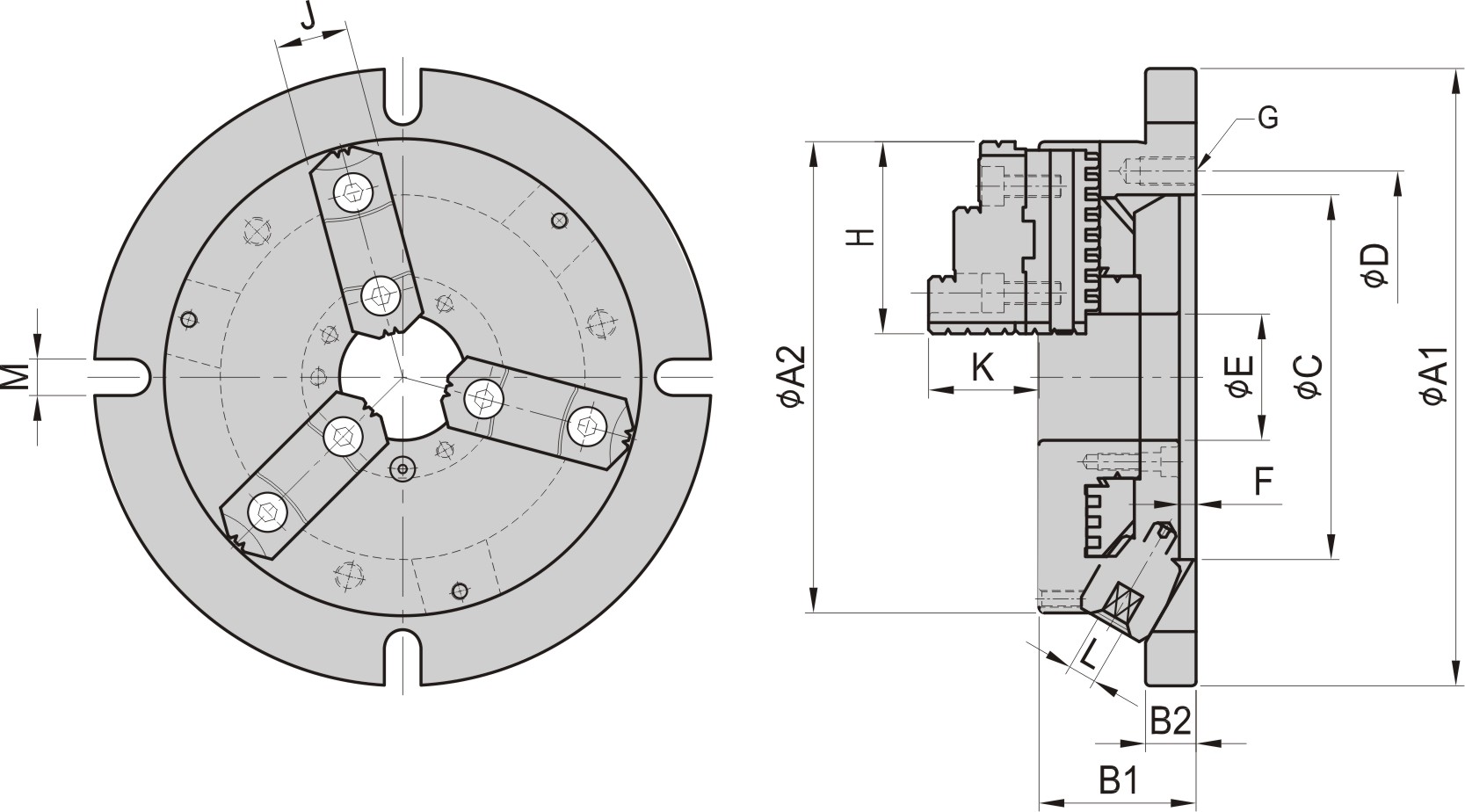

| MODEL NO. | A1 | A2 | B1 | B2 | C | D | E | F | G | H | J | K | L | M |
| NBK-12 | 370 | 305 | 80 | 22 | 250 | 285 | 105 | 5 | 3-M12 | 118 | 40 | 59 | 14 | 18 |
| Max Dia Gripped by | kg | ||
| external | internal | ||
| φ 15 - φ 300 | φ 86 - φ 290 | 42.9 | |
