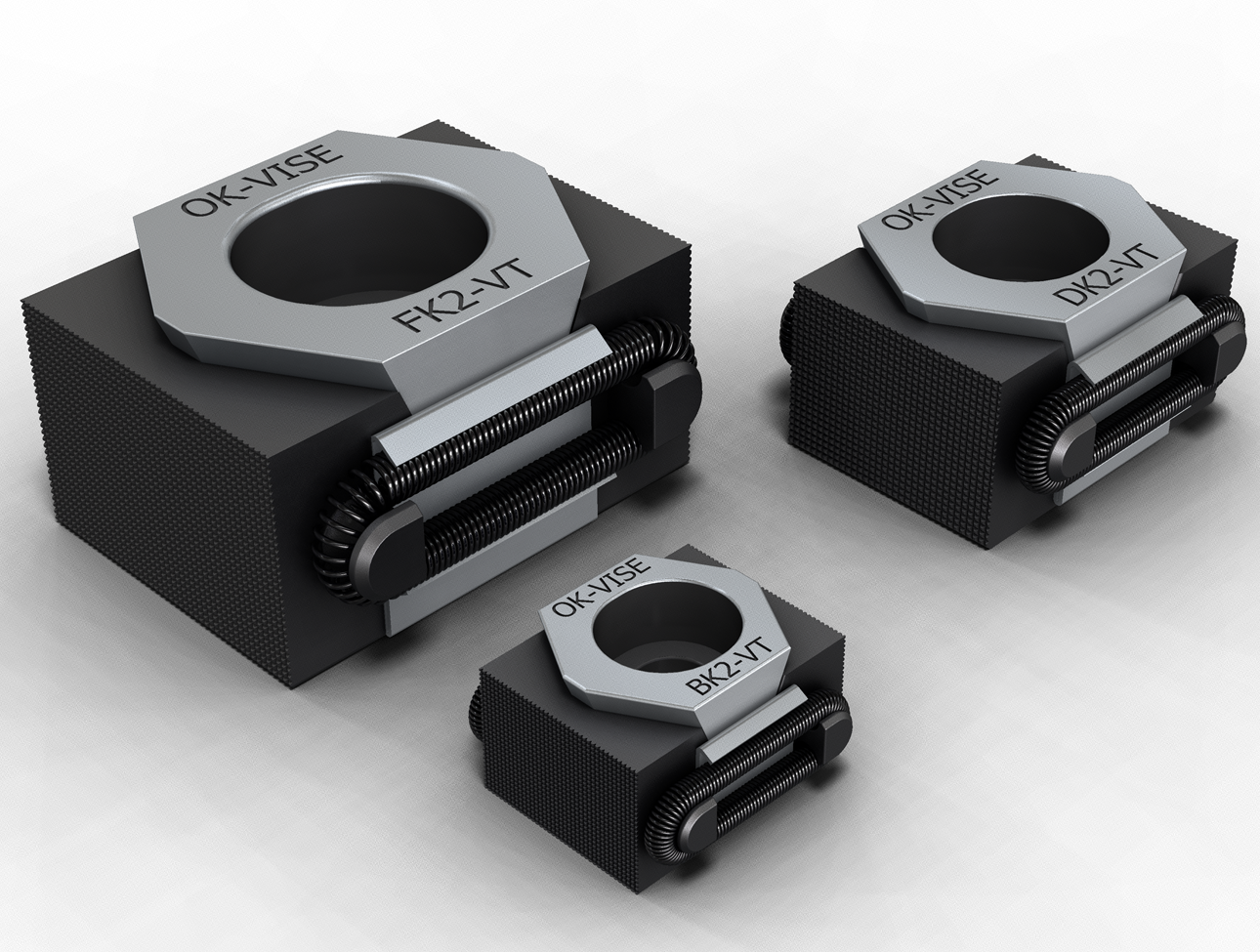

BK2-VT
CLAMPING UNIT
- 2D
- 3D
| MODEL NO. | A | B | C | D | E | F | Socket Head Screw DIN 912 |
Pressing force of jaws, kN |
||
| min | optimum | max | ||||||||
| BK2-VT | 27 | 29 | 31 | 29 | 15 | 21 | 2.5 | 1 | M8 x 020 | 25 |
| Weight in kg approx. | Hardness of jaws HRC |
|
| 0.055 | 48 -52 |
NOTICE: Standard jaw is serrated ( as drawing), if you need flat-jaw, please add "-s" after the model number.
For example: BK2-VT-S
