Standard Fixture Clamps/12 pk
MIB-50208
Standard Fixture Clamps/12 pk
Description

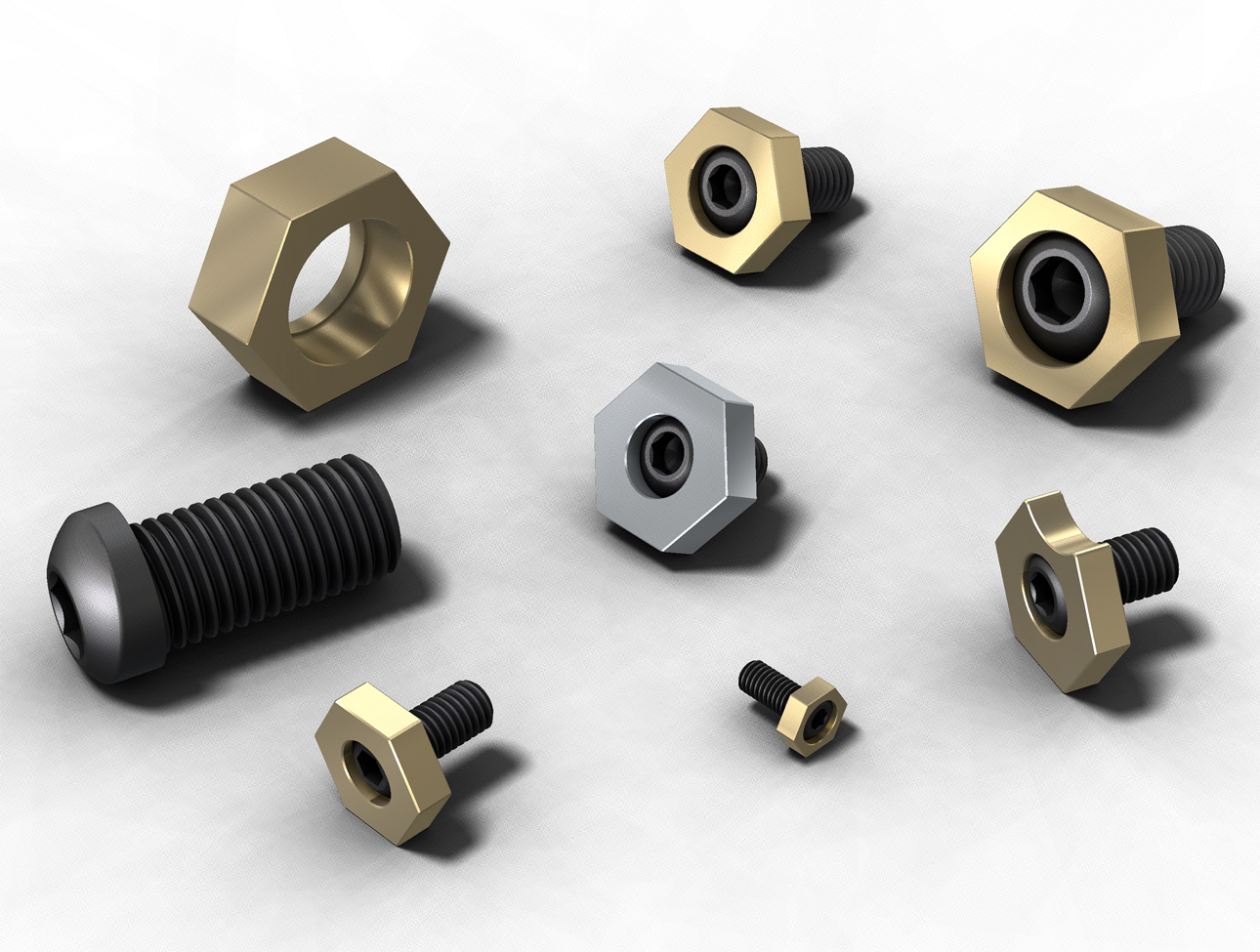

Made up of two simple components: a hardened steel socket cap screw with an offset head and a brass hexagonal washer.– Low profile for quick and easy installation for linear motion guide rails
– Cam action provides fast, strong clamping
– Small size allows more parts per load
– Simple design keeps cost low
NOTE: Clockwise rotation is recommended. Locating pin should be on the right of workpiece.
Dimension
| MODEL NO | Thread | Width | Thickness |
|---|---|---|---|
| MIB-50208 | M8 | 20.61 | 4.75 |
| MODEL NO. | A | B | C | D | E | F | G | Torque (N.m) |
Clamping Force (N) |
Number of Clamps per PACK |
| MIB-50208 | M8 | 5 | 1.01 | 20.61 | 4.75 | 15.0 | 10.15 | 11.30 | 3558 | 12 |
