GVS-AS60
SUPER PRECISION VISE
GVS-AS60
SUPER PRECISION VISE
Description
Super precision: // ±0.003 / 100mm⊥ ±0.005 / 100mm
Heat treated: HRC 58°~60°
Material: SKS3

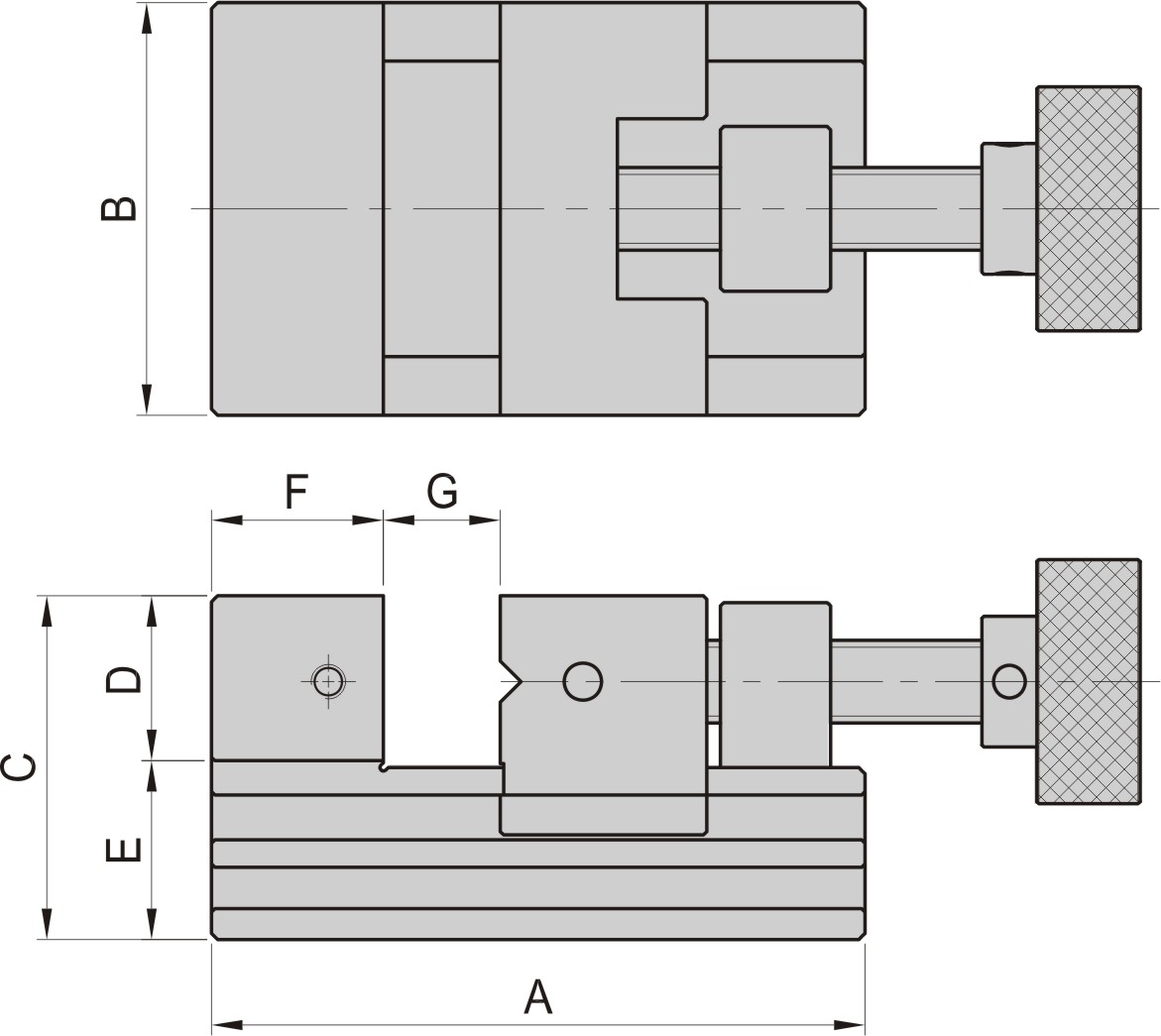

Dimension
| MODEL NO | Width | Clamping Range |
|---|---|---|
| GVS-AS60 | 60 | 0~30 |
| MODEL NO. | A | B | C | D | E | F | G | kg |
| GVS-AS60 | 95 | 60 | 50 | 25 | 25 | 26.0 | 0 ~ 30 | 1.7 |
