BP01-50400-0600
M/C BASE PLATE
- 2D
- 3D
BP01-50400-0600
M/C BASE PLATE
Description
Material: Cast Iron FC300(JIS) / GG30(DIN)Heat treated (Normalized)
Application: Vertical Machining Center.
Features: Ready to accept a hole pattern for your special jig.

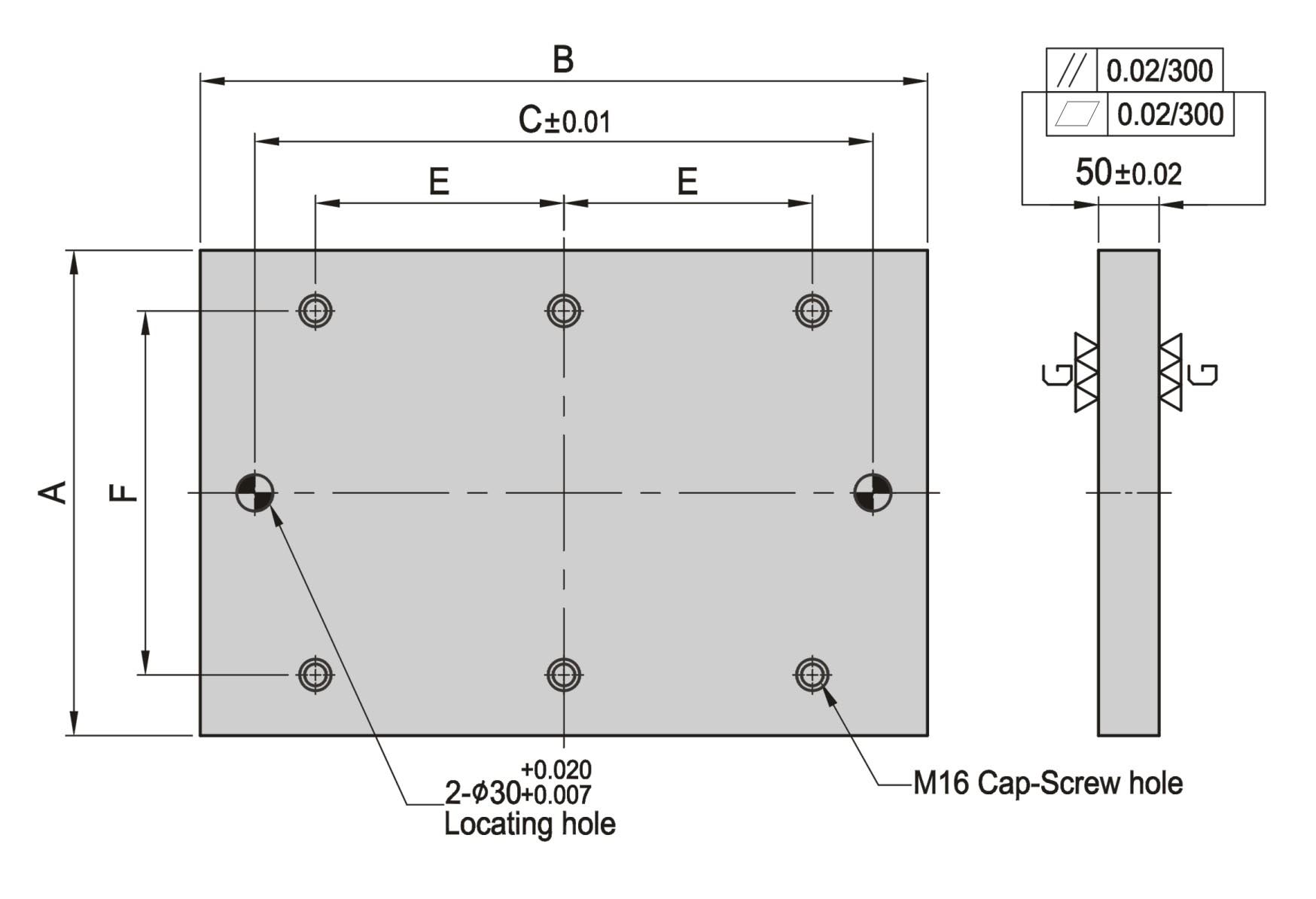

Dimension
| MODEL NO | Width | Length | Height |
|---|---|---|---|
| BP01-50400-0600 | 400 | 600 | 50 |
| MODEL NO. | A | B | C | E | F | kg |
| BP01-50400-0600 | 400 | 600 | - | - | - | 88 |
* Special Design Welcome!
